SC405

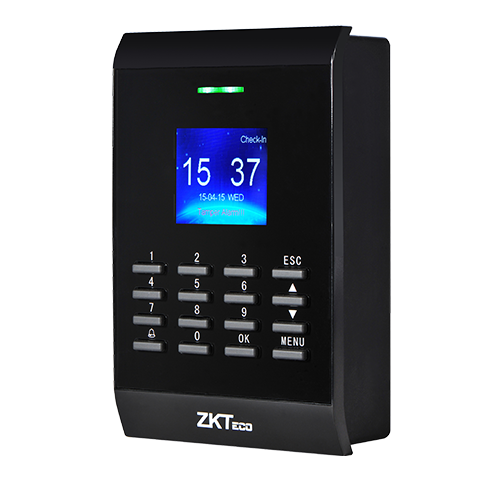

SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.

Features

SC405 TCP/IP or RS485 communication for various networking environments
SC405 2.0-inch color display with graphical UI for easy operation
SC405 Multi-languages
SC405 Supports USB flash drive for offline data management

Parameter

ID card Capacity

30,000

Transaction Capacity

80,000

Communication

TCP/IP, RS485, USB-Host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, doorbell

Auxiliary Interface

1ea for linkage function

Wiegand Signal

Output & Input×SRB

Standard Functions

Anti-passback

Optional Functions

Mifare-Print Function

Display

TFT LCD Color Screen

Power Supply

DC 12V

Operating Temperature

0°C ~ 45°C

Operating Humidity

20% ~ 80%

Dimension(L×W×H)

143mmx96mmx42mm

SDK

Standalone SDK

Software

ZKAccess3.5

Download

SC405

0.36 MB

2015-07-27

SC405

2.0 Inch TFT RFID Access Control Terminal Quick Start Guide

0.91 MB

2015-07-10

2.0 Inch TFT RFID Access Control Terminal Quick Start Guide

2.0 Inch TFT RFID Access Control Terminal User Manual

3.89 MB

2015-07-27

2.0 Inch TFT RFID Access Control Terminal User Manual
