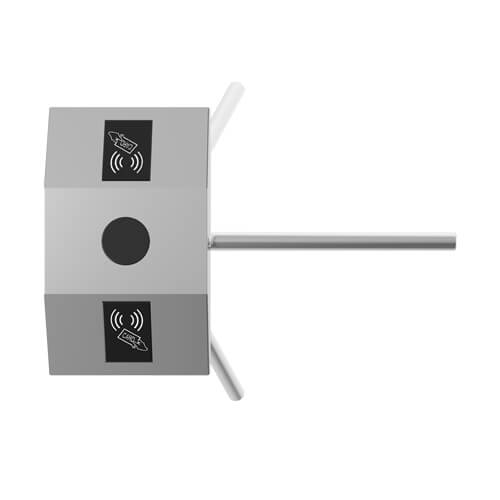

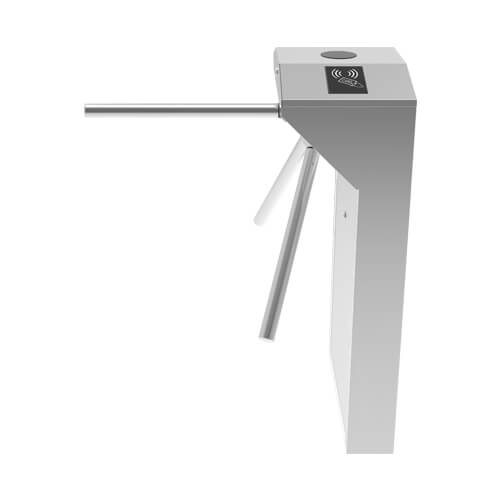

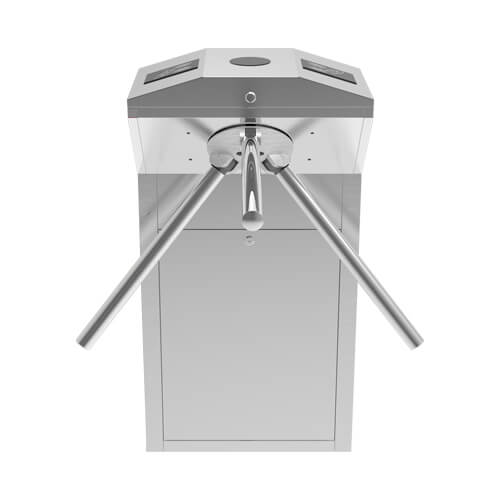

TS1000 Pro Series

Our Pro series tripod turnstiles represent classic and safe way to protect your premises. They are widely used in various indoor environment applications. They fit perfectly as an economical option into the office buildings and other related applications.

Parameter

Power requirements	AC110V/220V, 50/60Hz
Power consumption	Starting	68W
	Standby	15W
	Unlock	60W
Working temperature	-28 °C - 60 °C
Working humidity	5%-80%
Working environment	Indoor/Outdoor(if sheltered)
Speed of throughput	RFID	Maximum 30/minute
	Fingerprint	Maximum 25/minute

Lane width(mm)	500
Footprint(mm*mm)	520*810
Dimension(mm)	L=520, W=310, H=1010
Dimension with packing(mm)	L=570, W=365, H=1080
Net weight(kg)	34
Weight with packing(kg)	40
LED indicator	Y
Cabinet material	SUS304 Stainless Steel
Lid material	SUS304 Stainless Steel
Barrier material	SUS304 Stainless Steel
Barrier movement	Rotation
Emergency mode	Y
Security level	Medium
Mean cycles between failure (MCBF)	1 million
Options/Accessories	Counter, SUS316 Cabinet and Lid, Remote Control
