ZK-VSCN100

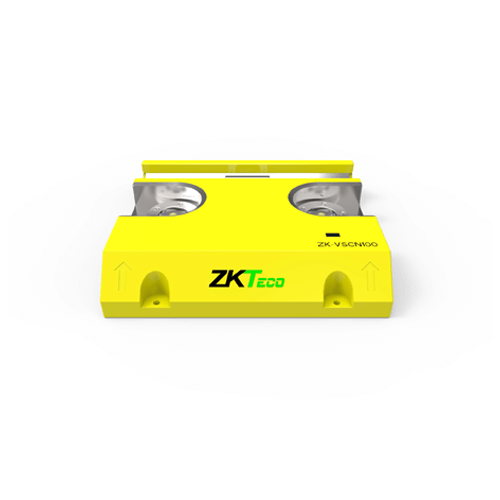

ZK-VSCN100 is a portable under vehicle inspection system, is used to detect vehicle undercarriage. When the vehicle passes, system can quickly recognize the vehicle license plate and generate a high definition image of vehicle undercarriage, which will be recorded in the computer. With foreign object detection function, system can quickly and accurately identify suspect objects attached to the underside of vehicles.
ZK-VSCN100 can be quickly installed or disassembled and used in many solution. It does not need civil construction and can be installed in 10 minute include wiring. In addition, it is convenient to move and deliver because all components are able to place in a cabinetwith wheels. This under vehicle inspection system greatly improves the efficiency and accuracy of security check in order to achieve a higher level of safety.

Features

ZK-VSCN100 Advanced workstation PC
ZK-VSCN100 Automatic digital line scan camera
ZK-VSCN100 Easy to install
ZK-VSCN100 Real-time surveillance

Parameter

Scanning camera High-speed line-scanning camera
Vertical resolution of the image >6000*2048 pixels
Speed of vehicle 1-60km/h (Recommended speed: ???30km/h)
Effective field of view (FOV) Less than 170??
Auxiliary light 160W
Weight capacity 30T
Water-proof grade IP68
Device weight 52KG
Device size 670mm*550mm*740mm
Package weight 95KG
Package size 850mm*650mm*970mm
Communication interface RJ45
Operating temperature -10??? to 60???
Operating voltage AC 220V/110V, 50-60HZ
Surveillance camera 2MP HD camera
Storage 1TB hard disk

Download

ZK-VSCN100 Data Sheet

0.66 MB

2018-11-01

ZK-VSCN100 Data Sheet

User Manual of ZK-VSCN100

5.85 MB

2017-11-20

User Manual of ZK-VSCN100
