PFace202

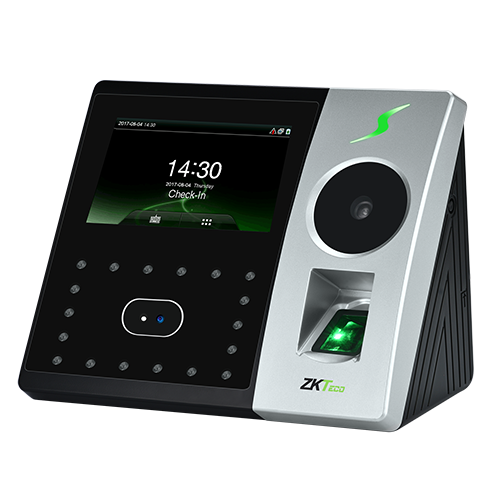

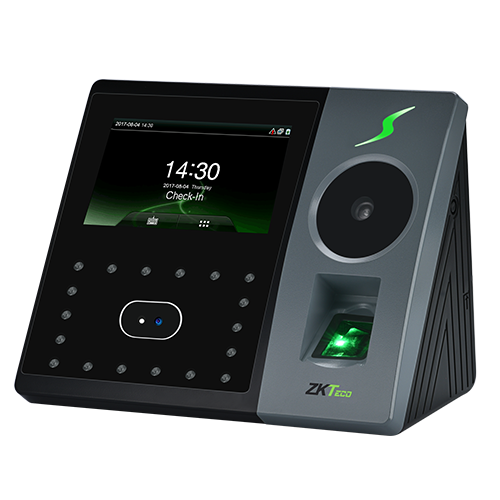

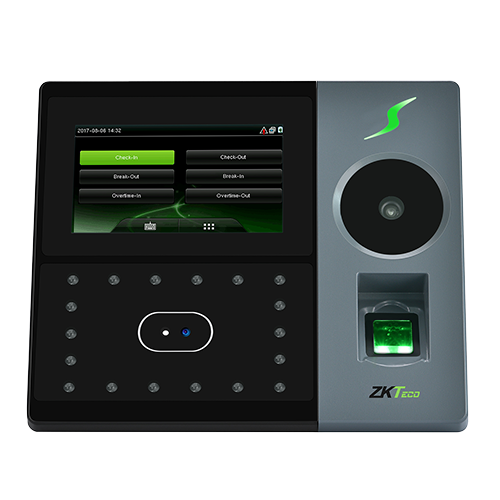

PFace202 multi-biometric time & attendance and access control terminal supports up to 600 palm templates, 1,200 face templates, 2,000 fingerprint templates and 10,000 cards (optional).
With ZKTeco latest hardware platform and ZKFace, ZKFinger, ZKPalmVein algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.
With advanced palm & face algorithm and multi-biometric verification technology, the terminal's security level of verification is significantly enhanced.

Features

PFace202 Advanced Access Control Function
PFace202 Optional built-in battery backup
PFace202 600 palm, 1,200 face and 2,000 fingerprint templates
PFace202 Multi-Biometric Verification mode: Palm/Face/Fingerprint

Parameter


Display

4.3-Inch Touch Screen

Capacity

Palm Capacity: 600, Fingerprint Capacity: 2,000, Face Capacity: 1,200 (1:N) /3,000 (1:1)

ID Card capacity

10,000 (optional)

Logs capacity

100,000

Communication

TCP/IP, USB Host, Wi-Fi (optional)

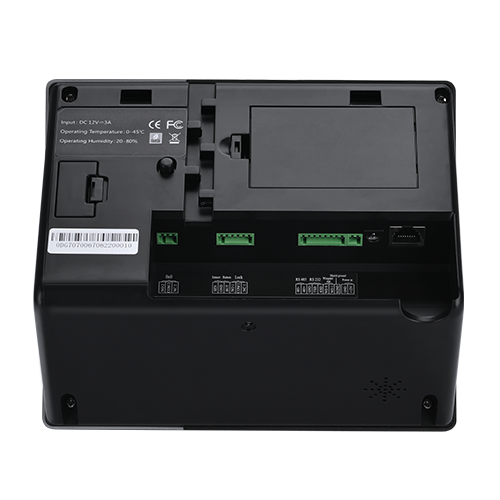

Interfaces for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Wiegand Out

Standard Functions

Automatic Status Switch, Self-Service Query, Work Code, SMS, DST, T9 Input, 9 Digit User ID, Scheduled Bell, Photo ID

Optional Functions

Mifare Card, 3G, ADMS, 2000mAH Backup Battery

Power Supply

12V 3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimensions

193.6*165*111mm (Length*Width*Thickness)

Package Weight

1.89 kg

Download

PFace202 Quick Start Guide

0.58 MB

2017-08-24

PFace202 Quick Start Guide

PFace202 Data Sheet

0.43 MB

2017-08-24

PFace202 Data Sheet

PFace202 User Manual

2.09 MB

2017-08-24

PFace202 User Manual
