ProBio

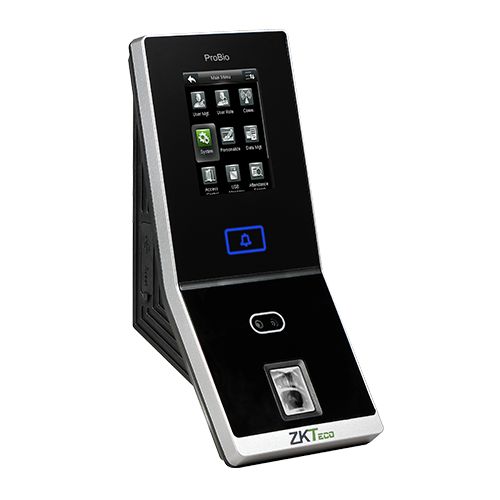

ProBio is the first access control terminal to apply the most advanced Silk ID and face technology together. Silk ID not only has outstandingly high identification rate towards dry, wet, and rough fingers, but also provides the utmost security with alive finger detection. It can operate under strong light, and activates automatically when finger approaches to save power.
Using ZKTeco's latest ZKFACE version 7.0 high-speed face recognition algorithm, it has extremely high verification speed and low error rate, in addition to being able to effectively prevent duplicated registration.
In addition, the new ZMM 220 hardware platform has a clock rate of 1.2 GHZ, greatly enhancing the speed of fingerprint and face verification. Such speedy hardware platform and fingerprint and face algorithm greatly enhance the speed of fingerprint and face verification.

Features

ProBio Built In Camera
ProBio Multiple Verification Modes
ProBio Outstanding Performance With Dry, Wet and Rough Fingers
ProBio Revolutionary SilkID
ProBio Simple Management & Scalability

Parameter


Fingerprint Capacity

4,000

Face Capacity

2,000 (1:N) / 4,000 (1:1)

Card Capacity

10,000

Transactions Capacity

100,000

User Photos

4,000

Event Photos

2,000

Communication

TCP/IP, RS485 (For Slave Reader), USB Host, Wiegand Input / Output, Security Relay Box

Hardware

1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 2,8 Inches TFT-LCD Touch Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Dual IR Camera

Standard Functions

Access Levels / Groups / Holidays , DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver

Special Functions

Multiple Biometric Verification Modes, Alive Finger Detection, Event Snapshot, User Photo

Access Control Interface

Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output

Compatibility

Wiegand Slave Reader, RS485 FP Slave Reader , ZKBioSecurity Software

Working Temperature

-10 °C ~ 50 °C

Dimensions

190.8 x 85 x 103 mm

Algorithm

ZKFace v7.0 & ZKFinger v10.0 Algorithms

Power

Operating Voltage 12V DC, Current Draw < 500 mA

Download

ZKBioSecurity Visitor Module Support Device List

0.16 MB

2018-01-17

ZKBioSecurity Visitor Module Support Device List

ZKBioSecurity Video surveillance Device List & Technical Detail

0.07 MB

2018-01-17

ZKBioSecurity Video surveillance Device List & Technical Detail

ZKBioSecurity Sever Configuration

0.06 MB

2017-08-29

ZKBioSecurity Sever Configuration

ZKBioSecurity Access Control & Elevator Device List

0.06 MB

2017-08-29

ZKBioSecurity Access Control & Elevator Device List

ProBio

1.42 MB

2016-08-12

ProBio

ProBio & ProFAC Installation Guide

3.13 MB

2016-12-13

ProBio & ProFAC Installation Guide

ProBio & ProFAC Quick Start Guide

2.4 MB

2016-02-26

ProBio & ProFAC Quick Start Guide

ProBio & ProFAC User Manual

7.73 MB

2016-02-26

ProBio & ProFAC User Manual

Green label software selection guide

0.8 MB

2019-01-20

Green label software selection guide

Green label hardware selection guide

0.4 MB

2019-01-20

Green label hardware selection guide

Green Label Introduction Guide

0.87 MB

2019-01-20

Green Label Introduction Guide
