FBL2000

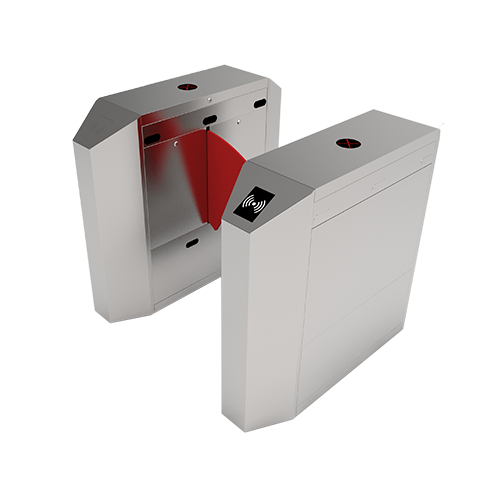

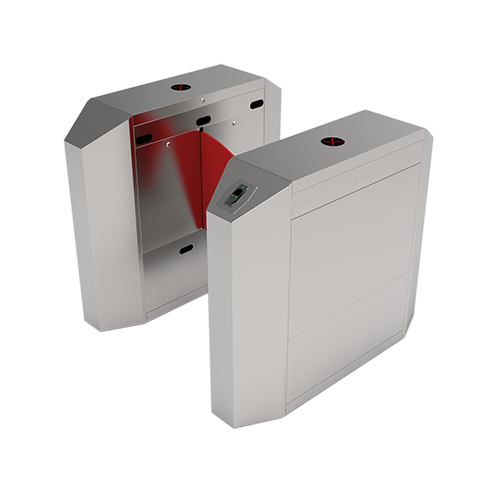

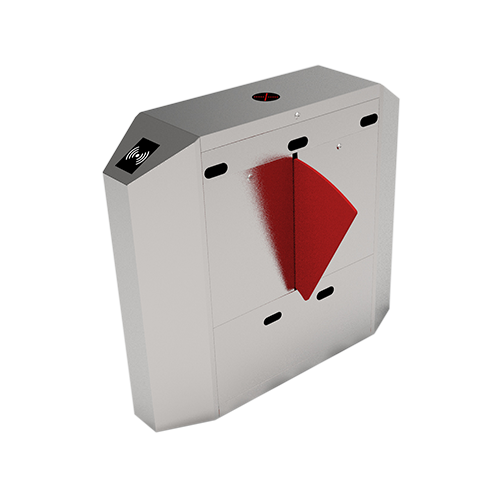

The FBL2000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL2000 highly durable. FBL2000 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL2000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side. During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically. FBL2000 provides both security and convenient space, all in a very durable and elegant compact design.

Features

FBL2000 Choice of reader (RFID or fingerprint)
FBL2000 LCD on the flap barrier control board
FBL2000 SUS304 stainless steel

Parameter

Power requirements AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature -28~60
Working humidity 5%~80%
Working environment Indoor/outdoor (if sheltered)
Speed of throughput RFID Maximum 30/ minute
Fingerprint Maximum 25/ minute
Lane width(mm) 600
Footprint(mm*mm) 1200*1150
Dimensions(mm) L=1150,W=300,H=1000
Dimension with packing(mm) L=1480,W=420,H=1110
Net weight(kg) 119
Weight with packing(kg) 157
LED indicator Y
Cabinet material SUS304 Stainless Steel
Lid material SUS304 Stainless Steel
Barrier material Acrylic
Barrier movement Retracting
Emergency mode Y
Security level Medium
MCBF 2 million



Download

Installation Guide of FBL1000&2000 Series

0.51 MB

2017-02-27

Installation Guide of FBL1000&2000 Series

User Manual of FBL1000&2000 Series

0.81 MB

2017-02-27

User Manual of FBL1000&2000 Series

FBL 2000 Date Sheet

0.23 MB

2018-09-10

FBL 2000 Date Sheet
