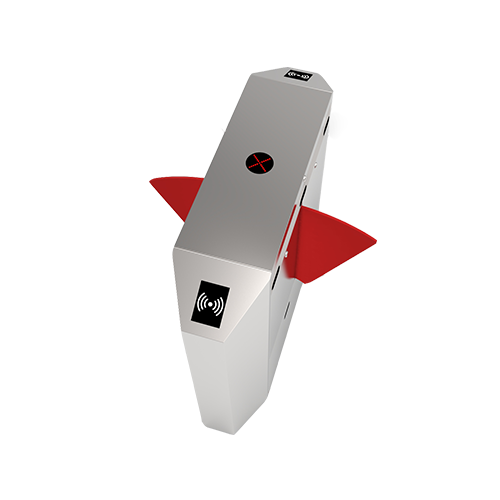

FBL2200

The ZKTeco FBL2200 dual lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The FBL2200 series should work together with FBL2000 series to build multiple lanes.

Features

Choice of reader (RFID or fingerprint)

LCD on the flap barrier control board

SUS304 stainless steel

Parameter

Power requirements	AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature	-28???~60???
Working humidity	5%~80%
Working environment	Indoor/outdoor (if sheltered)
Speed of throughput	RFID	Maximum 30/ minute
	Fingerprint	Maximum 25/ minute
Lane width(mm)	600
Footprint(mm*mm)	840*1150
Dimensions(mm)	L=1150,W=300,H=1000
Dimension with packing(mm)	L=1480,W=410,H=1110
Net weight(kg)	69
Weight with packing(kg)	98
LED indicator	Y
Cabinet material	SUS304 Stainless Steel
Lid material	SUS304 Stainless Steel
Barrier material	Acrylic
Barrier movement	Retracting
Emergency mode	Y
Security level	Medium
MCBF	2 million
