FBL5000

FBL5000

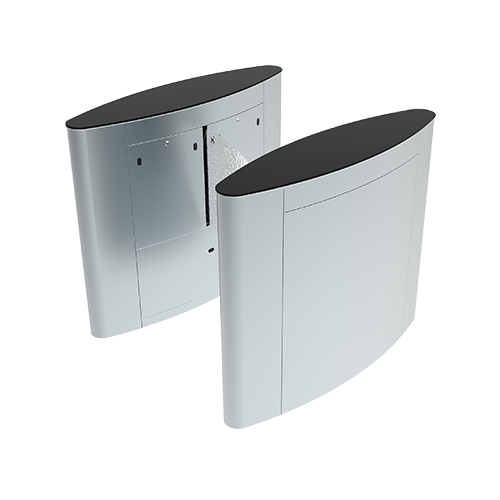

The ZKTeco FBL5000 single lane flap barrier turnstile is an elegant cost-effective entrance control systemdesigned for high-traffic volume.

Features

FBL5000

Choice of reader (RFID or fingerprint)

FBL5000

LCD on the flap barrier control board

FBL5000

SUS304 stainless steel

Parameter

Power requirements	AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature	-28???~60???
Working humidity	5%~80%
Working environment	Indoor/outdoor (if sheltered)
Speed of throughput	RFID	Maximum 30/ minute
	Fingerprint	Maximum 25/ minute
Lane width(mm)	600
Footprint(mm*mm)	1200*1200
Dimensions(mm)	L=1200,W=300,H=1010
Dimension with packing(mm)	L=1400,W=840,H=1100
Net weight(kg)	126
Weight with packing(kg)	196
LED indicator	Y
Cabinet material	SUS304 Stainless Steel
Lid material	SUS304 Stainless Steel
Barrier material	Acrylic
Barrier movement	Retracting
Emergency mode	Y
Security level	Medium
MCBF	2 million

Download

Installation Guide of FBL4000&5000 Series

0.4 MB

2017-10-26

Installation Guide of FBL4000&5000 Series

User Manual of FBL4000&5000 Series

1.04 MB

2017-10-26

User Manual of FBL4000&5000 Series

FBL 5000 Data Sheet

0.3 MB

2018-09-10

FBL 5000 Data Sheet
