SBTL3000

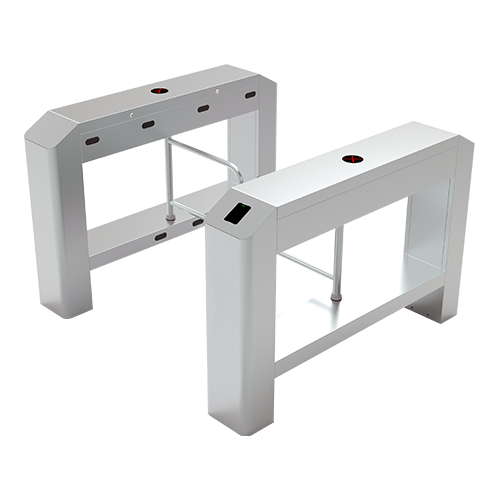

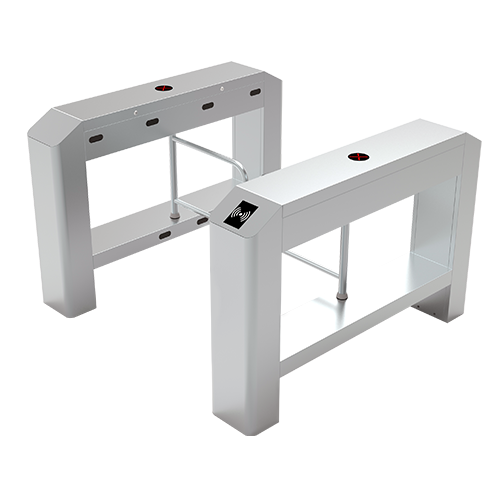

The ZKTeco SBTL3000 single lane swing barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
SBTL3000 barriers are normally held in a locked position, thus denying access to the secured side. Upon SBTL3000's reader (RFID and/or fingerprint) positively recognizing a user's valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.

Features

SBTL3000 Choice of reader (RFID or fingerprint)
SBTL3000 LCD display screen
SBTL3000 SUS304 stainless steel

Parameter

Power requirements AC110V/220v,50/60HZ
Working temperature -28???~60???
Working humidity 5%~80%
Working environment Indoor/Outdoor
Speed of throughput RFID Maximum 30/ minute
Fingerprint Maximum 25/ minute
Lane width(mm) 1,050
Footprint(mm*mm) 1570*1500
Dimensions(mm) L=1500,W=260,H=1000
Dimension with packing(mm) L=1640,W=760,H=1100
Net weight(kg) 114
Weight with packing(kg) 161
LED indicator Y
Cabinet material SUS304 Stainless Steel
Lid material SUS304 Stainless Steel
Barrier material SUS304 Stainless Steel
Barrier movement Swing
Emergency mode Y
Security level Medium
MCBF 2 million

Download

Installation Guide of SBTL2000&3000 Series

0.36 MB

2017-03-04

Installation Guide of SBTL2000&3000 Series

User Manual of SBTL2000&3000 Series

0.63 MB

2017-03-04

User Manual of SBTL2000&3000 Series

SBTL 3000 Data Sheet

0.33 MB

2018-09-10

SBTL 3000 Data Sheet
