SBTL5000

SBTL5000

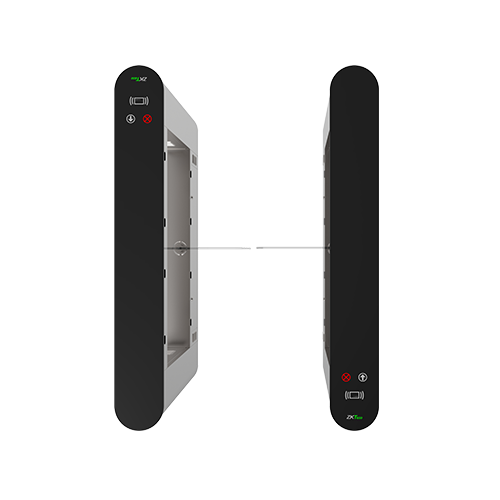

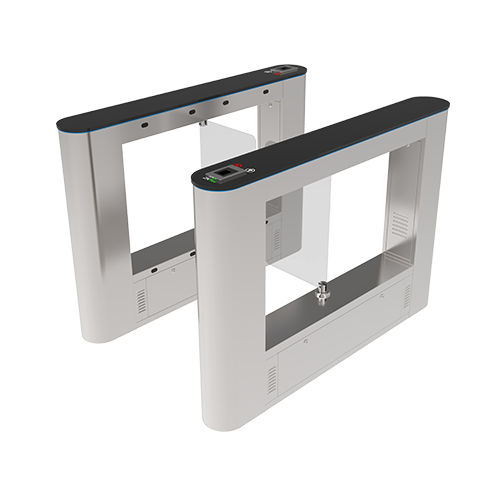

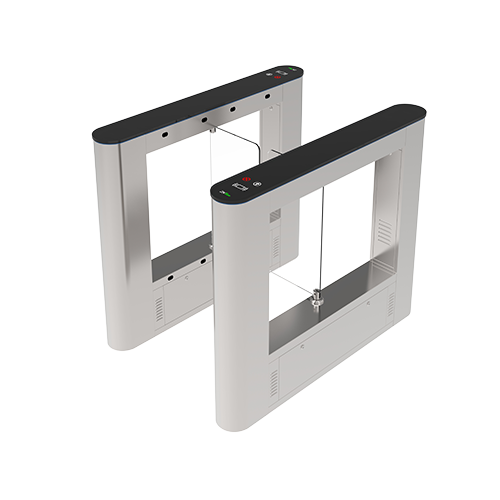

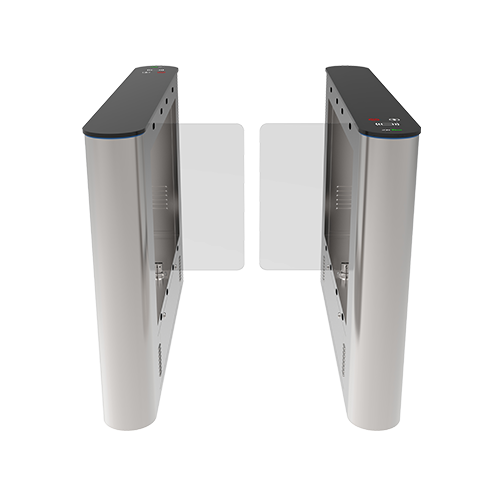

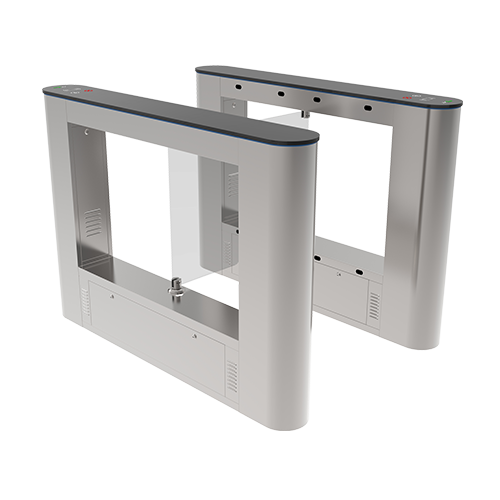

The ZKTeco SBTL5000 single lane swing barrier turnstile is an elegant highperformance entrance control system designed for high-traffic volume.

Features

SBTL5000

Control board with LCD screen

SBTL5000

Fingerprint & RFID reader

SBTL5000

SUS304 stainless steel

Parameter

Power requirements	AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature	-28???~60???
Working humidity	20%-95% (Non-condensing)
Working environment	Indoor
Speed of throughput	RFID	Maximum 30/ minute
	Fingerprint	Maximum 25/ minute
Lane width(mm)	650
Footprint(mm*mm)	1400*1010
Dimensions(mm)	L=1400, W=180, H=1000
Dimension with packing(mm)	L=1500, W=260, H=1100
Net weight(kg)	120
Weight with packing(kg)	150
Cabinet material	SUS304 Stainless Steel
Lid material	Tempered Glass
Barrier material	Tempered Glass
Barrier movement	Swing
Emergency mode	Y
Security level	Medium
MCBF	2 million

Download

SBTL5000 installation guide

0.36 MB

2018-02-07

SBTL5000 installation guide

SBTL5000 User manual

0.63 MB

2018-02-07

SBTL5000 User manual

SBTL 5000 Data Sheet

0.21 MB

2018-09-10

SBTL 5000 Data Sheet
