PB1000

PB1000

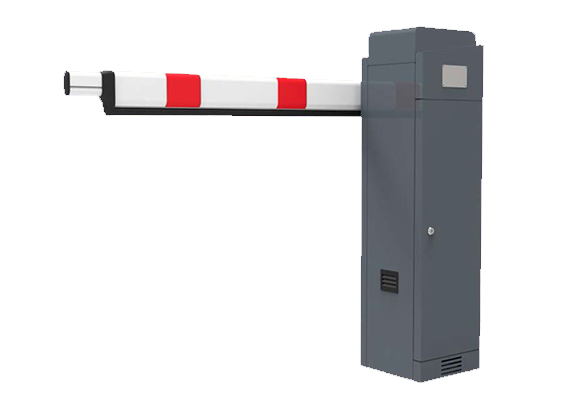

ZK Boom Barrier is a product which ZKTeco owns the independent intellectual property rights. Its boom prevents entry of unauthorized vehicles to restricted area, and is raised by the linkage between the gate and the remote control, access control system, long-distance reader and number plate recognition system. If a floor sensor is installed, strike can be avoided, and the boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.
The boom can be equipped with pressure wave. When there is any hindrance during the boom lowering, the boom will be automatically raised to prevent it from striking vehicles or people. LED light tape is also optional for changing color in boom raising or lowering, helping driver avoid hitting the boom.

Features

PB1000 Auto-sensing
PB1000 Long distance remote control
PB1000 2-3T high pressure resistance
PB1000 Handsfree control
PB1000 IP67 rated dustproof and waterproof
PB1000 180°anti-collision with built-in alarm system
PB1000 Low battery prompts
PB1000 Photoelectric sensor

Parameter

Model No. PB1010L/R PB1030L/R PB1060L/R
Lane Width 3M, up to 3.8M with telescopic boom 4M, up to 4.8M with telescopic boom 5M, up to 5.8M with telescopic boom
Opening / Closing Time 1.8S 3S 6S
Supply Voltage 110V AC or 220V AC 110V AC or 220V AC 110V AC or 220V AC
Power Consumption Max. 200W 200W 200W
Frequency 50-60Hz 50-60Hz 50-60Hz
Cabinet Material Powder Coated Steel Powder Coated Steel Powder Coated Steel
Boom Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Base Frame Cast Iron Cast Iron Cast Iron
Temperature Range -20°C~+60°C -20°C~+60°C -20°C~+60°C
Humidity Range ≤90% ≤90% ≤90%
Ingress Protection IP54 IP54 IP54
Housing Dimensions (W x D x H) 250 x 250 x 980mm 250 x 250 x 980mm 250 x 250 x 980mm
Packing Dimensions (W x D x H) 410 x 390 x 1170mm 410 x 390 x 1170mm 410 x 390 x 1250mm
Net Weight (Without Boom) 49KG 50KG 51KG
Gross Weight (Without Boom) 54KG 55KG 56KG


Note:


It is generally recommended to use the battery recommended by ZKTeco,

otherwise the battery life will not be guaranteed.
