PB3130

PB3130

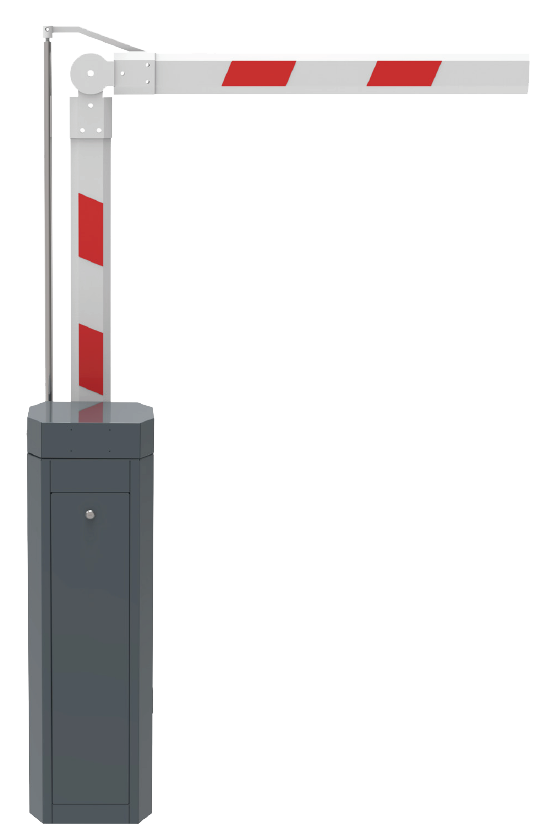

ZK Parking Barrier is a product which ZKTeco owns the independent intellectual property rights. The folding arm parking barrier be used to the underground parking area. The parking barrier support various ways to control. Such as by the remote control, access control system or UHF reader. Loop detector and infrared photocell as an optional function can promote the level of safety. If a loop detector is installed, impact can be avoided. The boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.
The parking barrier can be equipped with infrared photocell. When people / vehicle obscure the infrared launched from photo cell, boom will be stopped and then raised during lowering. After people / vehicle leave, the boom will be automatically lowered.

Features

PB3130 Auto-sensing
PB3130 Long distance remote control
PB3130 2-3T high pressure resistance
PB3130 Handsfree control
PB3130 IP67 rated dustproof and waterproof
PB3130 180??anti-collision with built-in alarm system
PB3130 Low battery prompts
PB3130 Photoelectric sensor

Parameter

Lane Width 4M
Opening / Closing Time 3S
Supply Voltage 110V AC or 220V AC
Power Consumption Max. 200W
Frequency 50-60Hz
Cabinet Material Powder Coated Steel
Boom Material Aluminum Alloy
Base Frame Cast Iron
Temperature Range -20°C~+60°C
Humidity Range =90%
Ingress Protection IP54
Packing Dimensions (Wx Dx H) 460 x 420 x 1150mm
Net Weight (Without Boom) 56KG
Gross Weight (Without Boom) 72KG


Note:


It is generally recommended to use the battery recommended by ZKTeco,

otherwise the battery life will not be guaranteed.

Download

Plock2 User manual

0.59 MB

2018-05-24

Plock2 User manual

PB3130 Data Sheet

2.71 MB

2019-01-03

PB3130 Data Sheet

FAQ for Parking Lock

1.11 MB

2019-01-14

FAQ for Parking Lock
