G4
  • G4
  • G4
  • G4

G4

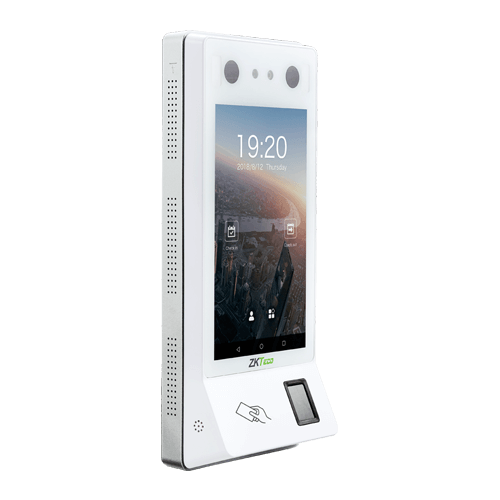

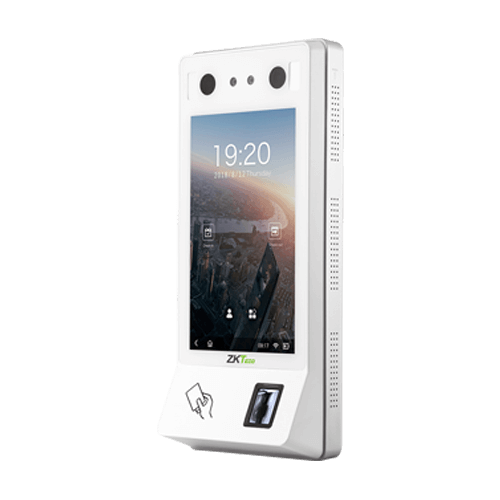

G4 is a multi-biometric identification terminal which features ZKTeco's innovative Enhanced Visible Light Facial Recognition and SilkID fingerprint sensor technology. The device with latest technologies can perform recognition in a distance from 0.5m to 3m and will function automatically when face are detected so as to deliver higher recognition quality in terms of speed and accuracy than the previous near IR facial recognition. With the applied Deep Learning algorithm, pose angle tolerance and anti-spoof function have been greatly enhanced against dynamic environment and various spoofing attacks. Also with the world's cutting-edge 3D Neuron Fingerprint Algorithm, it precisely authenticates dry, wet, or rough fingerprints efficiently and accurately.

Features

G4 Revolutionary SilkID FingerPrint Sensor
G4 Proactive Facial Recognition
G4 Wide Pose Angle Acceptance
G4 Enhanced Visible Light Facial Recognition
G4 New Height of Anti-Spoofing
G4 Touchless for Better Hygiene
G4 Multiple Verifications:Face/FingerPrint/Card/Password
G4 Speedy Recognition

Parameter

Capacity Users 10,000
Face Template 10,000
Fingerprints 10,000
MF Cards 10,000
Transactions 1,000,000
Hardware High Performance Android Industrial CPU / 2GB DDR3 RAM / 16GB ROM / SilkID FingerPrint Sensor / 7-inches Touch Screen, 1280*800 Pixel / 2NP Binocular Camera
Compatibility BioTime7.0 / ZKBiosecurity (Time Attendance)
Communication TCP/ IP/USB Host /Wiegand Input / Wiegand Output
Standard Functions MF Card / Work Code / ADMS/ DST / Bell Schedule / Attendance Status Auto-Switch / Record Query / Photo ID
Additional Info Algorithms ZKFace V10.0 & ZKFinger V12.0
Working Temperature 0°C~+50°C
Working Humidity <90%
Dimensions 264*120*51mm
Facial Recongntion Speed -1s
Facial Recongntion Distance 0.5m~3m
Power DC12V 3A
Access Control Interface Lock Relay Output / Exit Button /Alarm Outpu /Door Sensor /External Bell
Special Functions Enhanced Visible Light Facial Recognition / Liveness Face Detection / Multiple Biometric Verification Modes

Download

V1.2 Enhanced Visible Light Facial Recognition Using Deep Learning

7.67 MB

2018-12-18

V1.2 Enhanced Visible Light Facial Recognition Using Deep Learning

G4 User Manual

2.61 MB

2018-12-18

G4 User Manual

G4 Quick Start Guide

3.09 MB

2018-12-18

G4 Quick Start Guide

G4 installation position V1.0

0.39 MB

2018-12-18

 G4 installation position V1.0

G4 Data Sheet

3.93 MB

2018-12-18

G4 Data Sheet

Green label software selection guide

0.8 MB

2019-01-20

Green label software selection guide

Green label hardware selection guide

0.4 MB

2019-01-20

Green label hardware selection guide

Green Label Introduction Guide

0.87 MB

2019-01-20

Green Label Introduction Guide
