D1

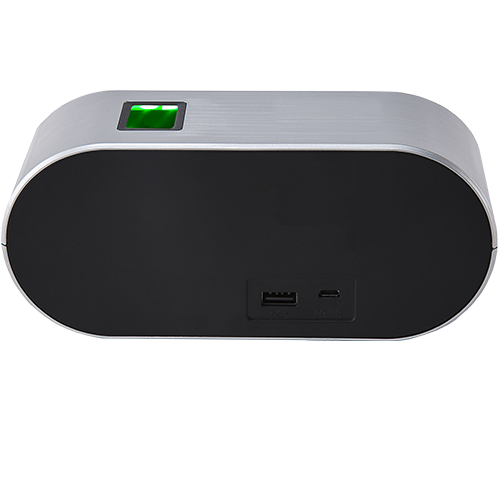

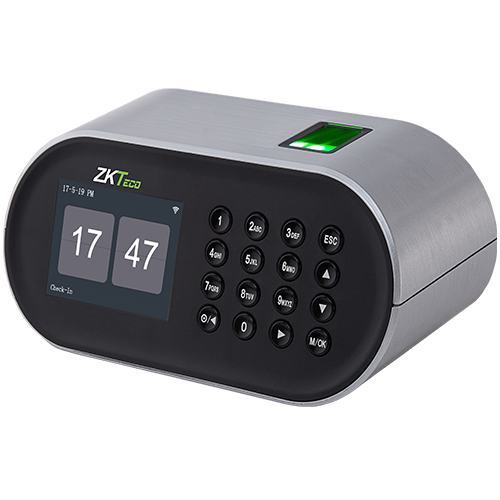

D1 Tabletop Terminal is specially designed for table or counter use (80-140cm). With fingerprint sensor placed on top of terminal, it enables all-directional fingerprint reading for the convenience of attendance. BioID high sensitivity fingerprint sensor provides faster and more accurate fingerprint verification. With built-in detachable battery lasting for up to 8 hours, and micro-USB power supply for power bank (minimum 2A) connection, there are no more worries for lacking power sockets supply.

Features

Report management

Mobile phone APP TA Assistant download report and shift Management

Quick recognition of dry, wet and rough Fingers

Wi-Fi

Parameter

Fingerprint Capacity	1000 / 1500 (without SSR)
Finger Algorithm	ZKFinger VX10.0
Record Capacity	50,000
Display	2.8-inch TFT Screen
Communication	Wi-Fi , USB-Host, USB-Client
Standard Functions	SSR, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
Optional Functions	TA Assistant APP, Time Cube Cloud Solution
Power Supply	DC 5V 0.8A
Operating Temp	0 °C - 45 °C
Operating Humidity	20%-80%
Dimension	168 x 125 x 37.5 mm
